4 Wire electric curtain tracks

Features

  • Quiet, DC motor, (AC Control)
  • Touch control technology, gently pull the curtain to open or close them
  • Integrated control ensures operation of the curtain manually in case of power failure

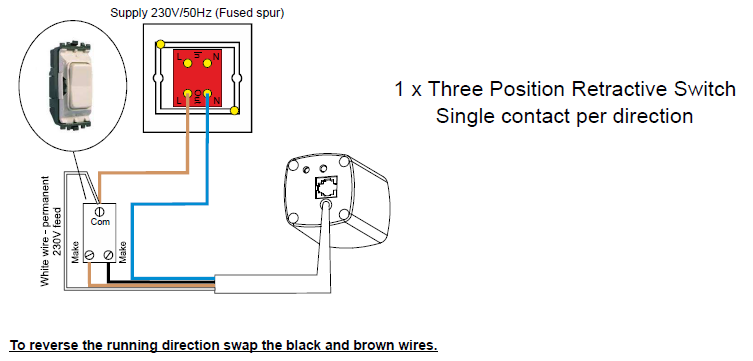

  • External Switch Control, 4 Wire AC Operation, Dry Contact
  • Full automatic setting of the limits
  • Made To Measure Fully Assembled Tracks
  • Suitable For Straight, Continuous Curve and Bay Windows
  • Compatible With Home Automation and Building Management
  • Track With Self Lubricating belt Design For Straight and Curved Tracks


MP45 Specification

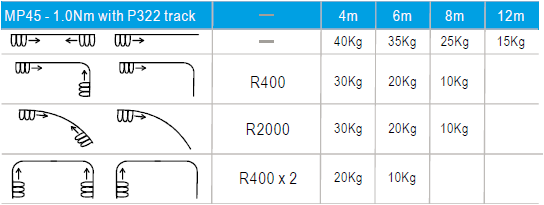

MP45 loading capacity

Curtain Motor - 4 Wire

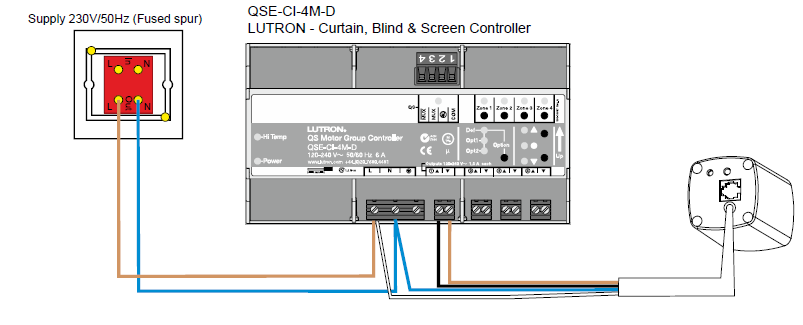

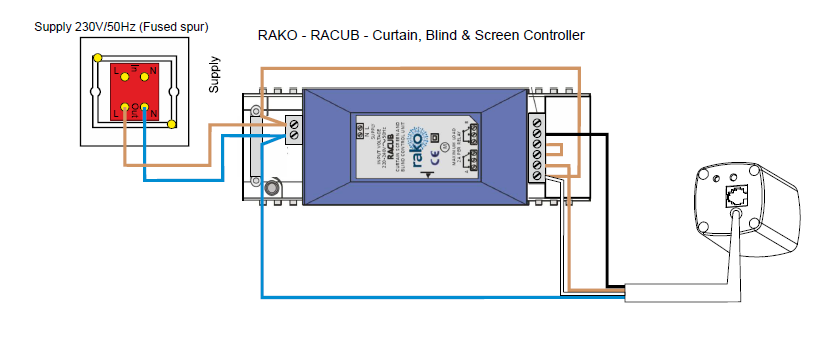

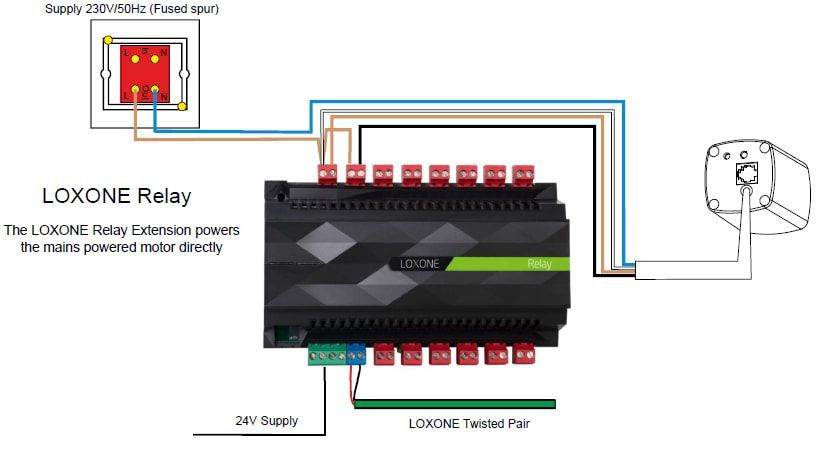

The Raex - 4 Wire Curtain Track System offers extensive versatility for both residential and commercial applications. This motorized curtain system is designed for seamless integration, supporting direct hardwiring to a wall switch or connection to advanced home automation or building management systems such as Loxone, Lutron, Control4, and Rako. It provides comprehensive control options ranging from smartphones to iPads and can be incorporated into mood scenes alongside lighting and many other AV controlled appliances, showcasing the adaptability of our electric curtain tracks.

The intelligent motor features automatic stop position calibration for both opening and closing actions, simplifying the setup process. Once configured, the motor remains concealed either by the curtain or recessed into the ceiling, ensuring an aesthetically pleasing finish.

Each curtain track is custom manufactured to meet specific requirements and specifications, accommodating continuous curves, multi-sided bays, or straight tracks.

This system enhances the luxury and comfort of your environment, delivering sophisticated functionality without complexity, making it ideal for homes and commercial settings.
