4 - Wire and Radio Controlled Roller Blind Motor (TP35)

The TP35 utilises an internal DC motor, the speed can be adjusted to 3 different speeds with the addition of soft start - soft stop.

Specification

Supply voltage : 100 - 230V AC
Frequency : 50 / 60Hz
Rated current : 0.5A
Connected load : 60W
Speed : Adjustable 18, 22 or 26rpm
Rated torque : 5Nm
Limit switch range : Unlimited
Operational mode : S2 6min
Degree of protection : IP44
Radio : 433Mhz

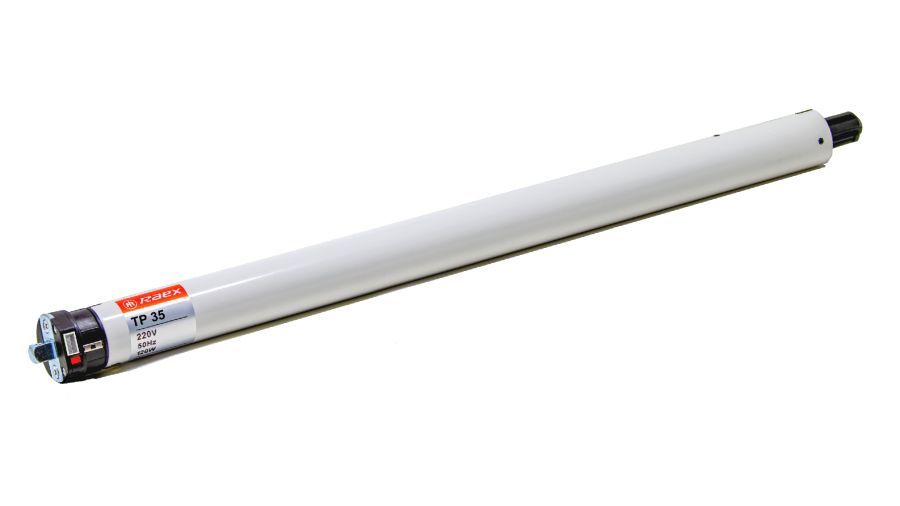

TP35 Universal Blind Motor

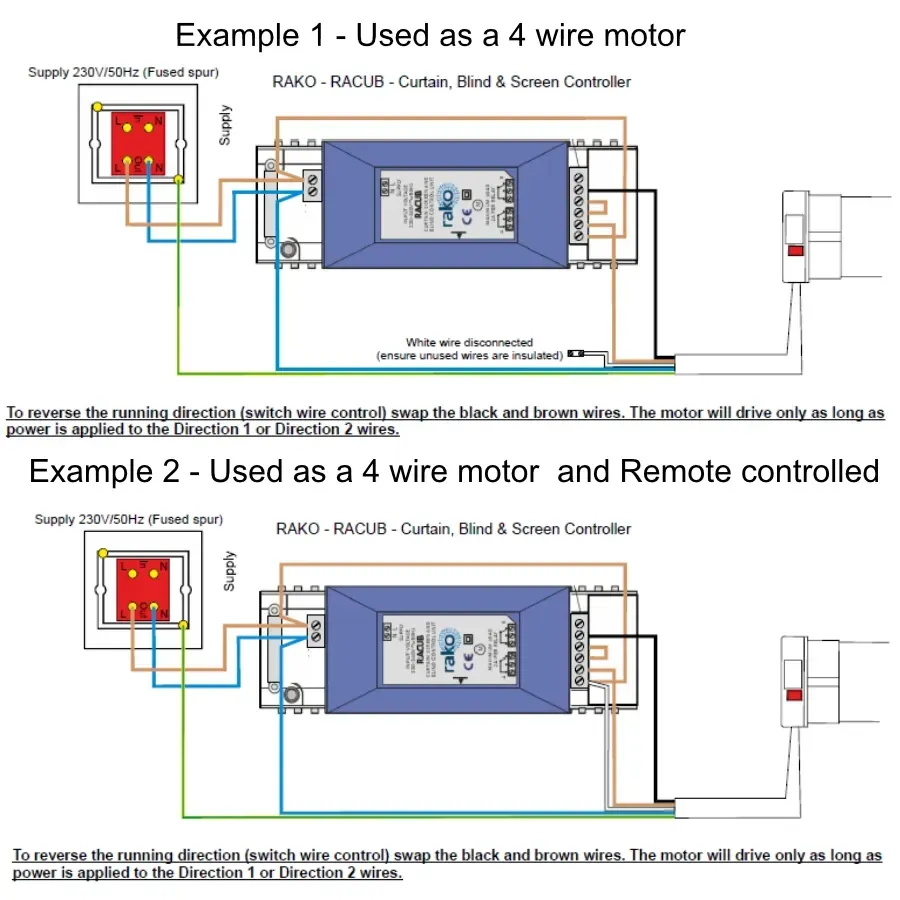

The TP35 roller blind motor is a versatile solution that supports 4-wire control, making it compatible with advanced smart home automation systems. Designed for seamless integration, it works with wired control setups, allowing connection to home automation hubs, wall switches, and centralised systems for precise operation. This makes it ideal for users looking to incorporate motorised blinds into an existing smart infrastructure.

Additionally, the TP35 motor is remote-controlled, providing flexibility for standalone operation. With an RF remote, users can adjust blinds effortlessly without relying on a wired setup, making it a convenient option for both retrofitting and new installations. The dual control capability ensures flexibility, offering both manual command via remote and automated scheduling through smart home platforms.

Its ultra quiet motor, smooth operation, and compatibility with home automation make it a robust choice for residential and commercial applications, delivering convenience, efficiency, and modern control flexibility.
