Remote Controlled Roller Blind Motor 230VAC (TQA25)

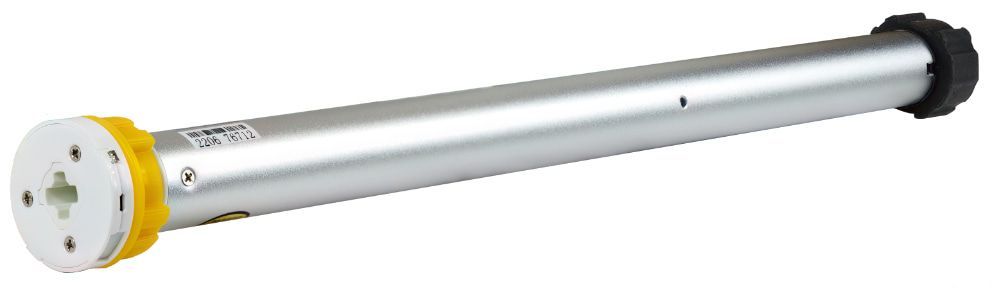

Mains powered roller blind motor 25mm dia

The TQA25 is a remote controlled 25mm diameter motor.  It is an ideal solution for domestic and commercial blinds as a compact and quiet motor.


Specification

  • Supply voltage :             100 - 230V AC
  • Frequency :                     50 / 60Hz
  • Rated current :               0.45A
  • Speed :                            15rpm
  • Rated torque :                1.1Nm
  • Operational mode :      S3 50%
  • Degree of protection :  IP41
  • Radio :                             433Mhz



TQA25 Blind Motor

The TQA25 roller blind motor offers a reliable and versatile solution for motorised blinds. Engineered for seamless integration, it supports both fused spur and UK plug connections, ensuring flexibility in installation.

The system is compatible with handheld or wall-mounted remote controls, allowing users to operate blinds with ease. Additionally, when paired with the USB Gateway, the TQA25 enables smartphone control from anywhere in the world, enhancing convenience and automation.

Featuring an ultra-quiet motor and smooth operation, this robust solution is well-suited for both residential and commercial applications, delivering efficiency, reliability, and advanced smart control capabilities

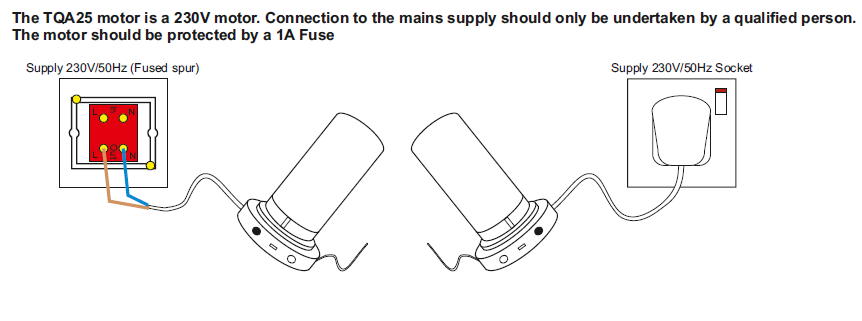

Wiring example

TQA25 Raex motor Wiring Example
